Introductory Computer Programming

Deepayan Sarkar

About this course

Compulsory non-credit course (pass marks: 35%)
Does not count towards composite score, but you need to pass

Syllabus
- Basics in Programming: flow-charts, logic in programming
- Common syntax
- Handling input/output files
- Sorting
- Iterative algorithms
- Simulations from statistical distributions
- Programming for statistical data analyses: regression, estimation, parametric tests

Exercise

Think of tasks that cannot be easily done without a computer
Could be both related and unrelated to what you are studying

Some specific examples

Can be solved using scalar variables only:
- Is a given natural number \(n \in \mathbb{N}\) prime?
- Given integer \(k \geq 0\), compute its factorial \(k!\), and \(\log k!\)
- Given integers \(n, k \geq 0\) such that \(k \leq n\), compute \(n \choose k\)

Probably need vector objects to be solved:
- Find all prime numbers less than a given number \(N\)
- Sort a given collection of numbers
- Produce a random permutation of a given set of numbers
- Given set \(S\) and query object \(x\), determine whether \(x \in S\) (set membership)

Some examples of simulation

Simple random walk (+1 or -1 with probability \(p\) and \(1-p\)):
- How long does it take to return to zero for the first time?
- When was the last return to zero before time \(2n\)?
Toss a coin (with probability of head \(p\)) until you get \(k\) consecutive heads.
- Based on observed value, can you test for \(p = \frac12\)?
Given a game of snakes and ladders, how many throws of the dice does it take to reach the end?
Shuffle a deck of cards.
- How can we probabilistically model a shuffle?
- How many times do we need to shuffle to make the deck approximately random?
- How can we “test” for randomness?

Some general problems

Given a function \(f\), solve for \(f(x) = 0\), e.g.,
- solve non-linear equations like \(e^x + \sin x = 0\)
- solve linear equations (e.g., as part of fitting linear models)
Optimization: given a function \(f\), find \(x\) where \(f(x)\) is minimized
- Sometimes this can be done by solving \(f'(x) = 0\)
Solution used usually depends on context

Algorithms

We will spend a lot of time discussing algorithms
An algorithm is essentially a set of instructions to solve a problem
Algorithms usually require some inputs
Instructions are executed sequentially, finally resulting in an output
You can think of an algorithm as a recipe (inputs: ingredients, output: food!)

Example: is a given number \(n\) prime?

Basic idea: see if \(n\) is divisible by any number between \(2\) and \(n-1\)
Obviously, enough to check is \(n\) is divisible by any number between \(2\) and \(\sqrt{n}\)
Intuitively, the second approach is more “efficient”

We will usually write algorithms in the form of pseudo-code as follows:

is_prime(n)

i := 2
while (i \(\leq\) sqrt(n)) {
    if (n mod i == 0) {
        return FALSE
    }
  i := i + 1
}
return TRUE

Example: is a given number \(n\) prime?

The meaning of this algorithm / pseudo-code should be more or less obvious
Assumes availability of certain basic operators / functions (mod, sqrt)
We often employ some conventions and use some structures in pseudo-code
For example,

is_prime(n)

i := 2                    // variable assignment
while (i \(\leq\) sqrt(n)) {    // loop while condition holds
    if (n mod i == 0) {   // branch if condition holds
        return FALSE      // exits with output value
    }                     // end of blocks within loops, branches, etc.
    i := i + 1            // update variable value
}
return TRUE

Example: is a given number \(n\) prime?

These conventions are not standard; alternative forms could be:

is_prime(n)

i = 2 // different assignment operator
while i \(\leq\) sqrt(n) // end of loop indicated by indentation
    if n mod i == 0
        return FALSE
    i = i + 1
return TRUE

is_prime(n)

i <- 2 // yet another assignment operator
while i \(\leq\) sqrt(n) // end of loop indicated by end keyword
    if n mod i == 0
        return FALSE
    end
    i <- i + 1
end
return TRUE

Theoretical questions about algorithms

Is an algorithm correct? To be correct, an algorithm must
- stop after a finite number of steps, and
- produce the correct output for all possible inputs (i.e., all instances of the problem).
How efficient is the algorithm?
- What resources does the algorithm need to run, typically in terms of time and storage?
- How does it compare with other algorithms for the same problem?

To answer such questions, we need a model for computation

Ingredients of a computational model

There are actually many different approaches to programming
We will mostly consider structured programming
Characterized by use of various control flow constructs (if, then, while, for, etc.) and block structures
More specifically, we will focus of procedural programming
Characterized by use of modular procedures (usually called functions)
We are mainly interested in procedures that perform some computations
Most algorithms we will discuss directly correspond to procedures or functions when actually implemented

We will not discuss other kinds of programs (e.g., operating system, web browser, editor, etc.).

Functions and control flow structures

The main components of our programs are going to be functions.
Usually a programming language will have many built-in functions
Additional libraries or packages will provide more standard functions
Functions usually
- have one or more input arguments,
- perform some computations, possibly calling other functions, and
- return one or more output values.
The main contribution of a function is the second step

Functions and control flow structures

The standard model for performing computations is sequential execution
In other words, a function executes a set of instructions in a specified sequence
Some control flow structures may be used to create branches or loops in the flow of execution

Functions and control flow structures

Briefly, the main ingredients used are:
- Declaration of variables (implicit in some languages). The details of how variables store values, and who can access them (scope) are important, and will be discussed later.
- Evaluation of expressions. Can involve variables provided they have been defined in an earlier step.
- Assignment to variables (to store intermediate results for later use).
- Logical tests (equal?, less than?, greater than?, is more input available?).
- Logical operations (AND, OR, NOT, XOR).
- Branching - take different paths based on result of a logical operation (if-then-else).
- Loops - repeat sequence of steps, usually a fixed number of times, or while a condition holds (for / while).

Common operators (may have language-specific variants)

Mathematical operators:
- + (addition)
- * (multiplication)
- / (division — possibly integer division)
- ^ (power)
- % (the modulo operation)
Logical operators:
- & (AND)
- | (OR)
- ! (NOT)
Comparisons:
- == (equality)
- != (\(\neq\))
- <, > (strictly less than or greater than)
- <= >= (\(\leq\), \(\geq\))
Mathematical functions: round, floor, ceil, abs, sqrt, exp, log, sin, cos, ...

Practical implementation: programming languages

The algorithms we discuss can be implemented in many programming languages
Some standard languages suitable for structured programming are
- C (compiled)
- C++ (compiled)
- R (interpreted)
- Python (interpreted)
- Julia (interpreted)
There are also many others with various relative strengths and weaknesses
In this course, we will mainly focus on
- R because it already has an extensive collection of statistical software that we can use
- C / C++ because it is easy to call C / C++ code from R (useful when R code is inefficient)

Example: The `is_prime` algorithm in various languages

Recall the is_prime algorithm to determine if a number is prime
With slight modification to use only integer arithmetic

is_prime(n)

i := 2
while (i * i \(\leq\) n) {
    if (n mod i == 0) {
        return FALSE
    }
  i := i + 1
}
return TRUE

Example: The `is_prime` algorithm in various languages

Implemented in C, the algorithm would look like this:

int is_prime_c(int n)
{
    int i = 2;
    while (i * i <= n) {
        if (n % i == 0) {
            return 0;
        }
        i = i + 1;
    }
    return 1;
}

C is a compiled language, so actually running this code involves some additional work
Note that all variable types need to be explicitly declared
This includes the types of function arguments (inputs) and return value (output)

Example: The `is_prime` algorithm in various languages

The same algorithm would look like this in R:

is_prime_r <- function(n)
{
    i <- 2
    while (i * i <= n) {
        if (n %% i == 0) {
            return (FALSE)
        }
        i <- i + 1;
    }
    return (TRUE);
}

The basic structure is very similar, but with some differences:
- The assignment operator is different (but = also works in R)
- The function declaration looks like a variable assignment
- The modulo operator is %% instead of %
- Uses TRUE and FALSE instead of 1 and 0 for logical values
- Statements do not end with a semicolon (although they could)
- Variable types are not declared
- The return value must be put in parentheses

Example: The `is_prime` algorithm in various languages

We can call this function after starting R and copy-pasting the function definition

is_prime_r(4)

[1] FALSE

is_prime_r(10)

[1] FALSE

is_prime_r(100)

[1] FALSE

is_prime_r(101)

[1] TRUE

Example: The `is_prime` algorithm in various languages

The implementation looks a little different in Python:

def is_prime_py(n):
    i = 2
    while i * i <= n:
        if n % i == 0:
            return 0;
        i = i + 1
    return 1

The main difference is that indentation defines code blocks
Changing indentation will change meaning of code, which does not happen in C or R
However, code in all languages should be indented properly for readability

Example: The `is_prime` algorithm in various languages

Again, we can start python, define the function, and run the following code

print(is_prime_py(4))

print(is_prime_py(10))

print(is_prime_py(100))

print(is_prime_py(101))

How can we run C / C++ code?

#include <stdio.h>
#include <stdlib.h>

int is_prime_c(int n)
{
    int i = 2;
    while (i * i <= n) {
    if (n % i == 0) {
        return 0;
    }
    i = i + 1;
    }
    return 1;
}


int main(int argc, char *argv[])
{
    int i, n;
    if (argc > 1) {    /* one or more arguments supplied  */
    for (i = 1; i < argc; i++) {
        n = atoi(argv[i]);  /* converts string to integer */
        printf("%d -> %d\n", n, is_prime_c(n));
    }
    }
    else printf("Usage: %s <n1> <n2> ...\n", argv[0]);
    return 0;
}

The code needs to be “compiled” before it is run
It also needs a main() function to be defined
main() is run first when the program is executed
Here is a complete file that can be compiled
How to compile & run depends on the operating system

gcc -o is_prime cdemo/is_prime_wrapper.c
./is_prime

Usage: ./is_prime <n1> <n2> ...

./is_prime 4 10 100 101

4 -> 0
10 -> 0
100 -> 0
101 -> 1

Compiled code vs interpreted code

R, Python, etc., are “interpreted” languages that read and evaluate code interactively
Compiled code is usually (but not always) much faster than interpreters
Most interpreters are themselves written in a compiled language
However, compiled languages have several disadvantages:
- They are not interactive!
- Trying out ideas (edit-compile-run) takes longer
- Most importantly: limited initial set of tools
- For example, you will need to write your own functions to import data, make plots, etc.
Ultimately, choice depends on the purpose of the program

Compiled code vs interpreted code

We will mainly use R (to take advantage of its many useful features)
We will not write C programs designed to be run directly
However, we will sometimes call C / C++ code from R to take advantage of its speed
The easiest way to do this is using a package called Rcpp
Python code can similarly be called using the reticulate package
And Julia code can be called using the JuliaCall package

I will give an example of Rcpp to illustrate its usefulness
We will look at it in more detail after learning more about R and C

An example of using Rcpp

The first step is to compile a C function so that it can be called from R

library(package = "Rcpp")
sourceCpp(code =
"

#include <Rcpp.h>

// [[Rcpp::export]]
int is_prime_c(int n)
{
    int i = 2;
    while (i * i <= n) {
        if (n % i == 0) {
            return 0;
        }
        i = i + 1;
    }
    return 1;
}

")

Alternatively, compile code in a file

library(package = "Rcpp")
sourceCpp("cdemo/is_prime_rcpp.cpp")

An example of using Rcpp

The C function can then be called just like an R function

is_prime_c(4)

[1] 0

is_prime_c(10)

[1] 0

is_prime_c(100)

[1] 0

is_prime_c(101)

[1] 1

An example of using Rcpp

We can call both versions on a sequence of integers as follows
The time required is recorded using system.time()

system.time(r_primes <- sapply(1:1000000, is_prime_r))

   user  system elapsed
 11.950   0.008  11.958

system.time(c_primes <- sapply(1:1000000, is_prime_c))

   user  system elapsed
  2.454   0.016   2.471

The C version is clearly faster
Would have been even faster if the loop was also in C
We can try this later after we discuss vectors / arrays

What is the advantage of doing this in R?

We can use R utilities to check that the results are the same

sum(r_primes == TRUE)   # counts number of TRUE in a logical vector

[1] 78499

sum(c_primes == TRUE)

[1] 78499

tail(which(r_primes == TRUE))    # extracts last few elements

[1] 999931 999953 999959 999961 999979 999983

tail(which(c_primes == 1))

[1] 999931 999953 999959 999961 999979 999983

identical(r_primes == TRUE, c_primes == 1) # tests whether two arguments are identical

[1] TRUE

What is the advantage of doing this in R?

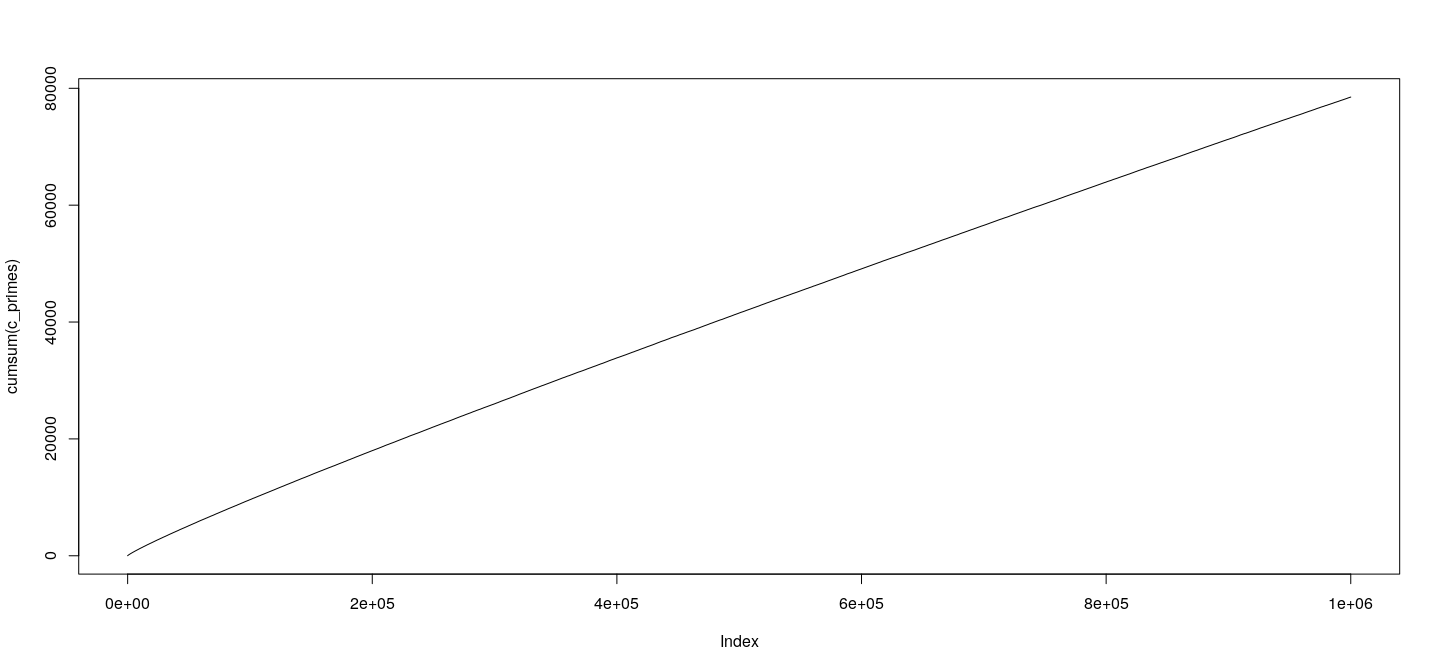

We can use R to visualize the prime counting function \(\pi(n)\)

plot(cumsum(c_primes), type = "l")

plot of chunk unnamed-chunk-12

What is the advantage of doing this in R?

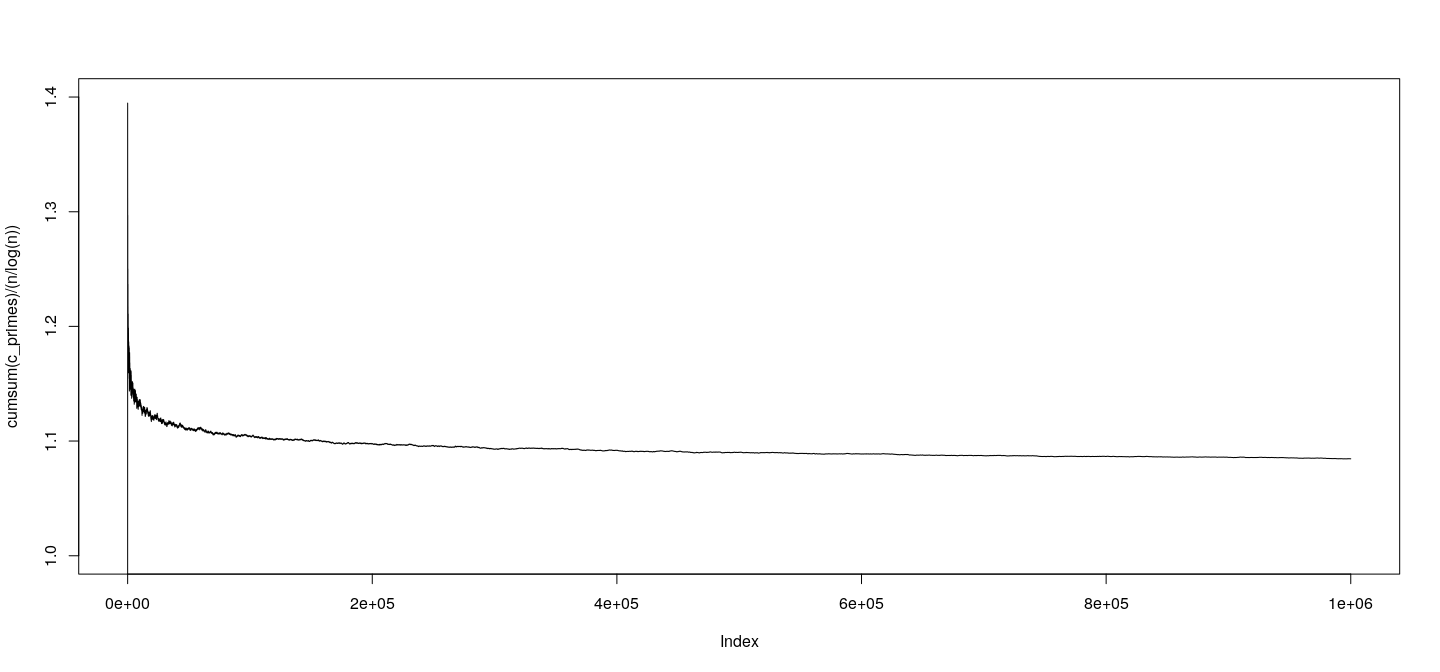

Is \(\pi(n) \approx n / \log n\)? (Prime Number Theorem)

n <- 1:1000000
plot(cumsum(c_primes) / (n / log(n)), type = "l", ylim = c(1, 1.4))

plot of chunk unnamed-chunk-13

What next

Over the next few classes, we will learn R more formally
We will then come back to study algorithms in more detail

Introductory Computer Programming

About this course

Exercise

Some specific examples

Some examples of simulation

Some general problems

Algorithms

Example: is a given number \(n\) prime?

Example: is a given number \(n\) prime?

Example: is a given number \(n\) prime?

Theoretical questions about algorithms

Ingredients of a computational model

Functions and control flow structures

Functions and control flow structures

Functions and control flow structures

Common operators (may have language-specific variants)

Practical implementation: programming languages

Example: The is_prime algorithm in various languages

Example: The is_prime algorithm in various languages

Example: The is_prime algorithm in various languages

Example: The is_prime algorithm in various languages

Example: The is_prime algorithm in various languages

Example: The is_prime algorithm in various languages

How can we run C / C++ code?

Compiled code vs interpreted code

Compiled code vs interpreted code

An example of using Rcpp

An example of using Rcpp

An example of using Rcpp

What is the advantage of doing this in R?

What is the advantage of doing this in R?

What is the advantage of doing this in R?

What next

Example: The `is_prime` algorithm in various languages

Example: The `is_prime` algorithm in various languages

Example: The `is_prime` algorithm in various languages

Example: The `is_prime` algorithm in various languages

Example: The `is_prime` algorithm in various languages

Example: The `is_prime` algorithm in various languages
